Brand Name : | NobTra |
Model Number : | NBAB-25VIP |
Certification : | CE |
Price : | USD545.5/PC-568.1/PC |
Delivery Time : | 7-10 working days |
Payment Terms : | T/T |
Supply Ability : | 5000PCS/MONTH |

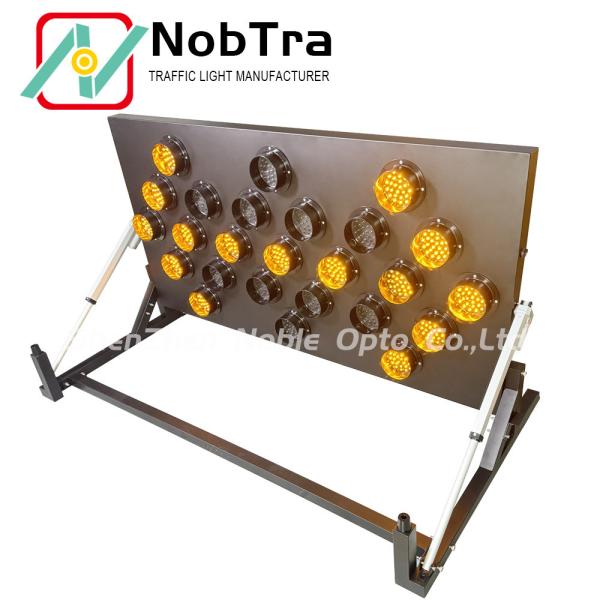

The LED Arrow Board is equipped with an intelligent MCU that
controls its operations. The board has two parts, the transmitter,
and the receiver.
The LED board utilizes Full-Duplex Transmissions, wireless remote
control, and automatically extends and retracts with an actuator up
and down for easy visibility.
The operating voltage of the LED Arrow Board is 12/24VDC and it has
13 kinds of work status: 6 flashing and 7 sequential. It also has
brightness adjustment options of 25%, 50%, 75%, 100%.
If an external power supply is chosen, they will be a low voltage
indicator when the power is lower than 12V, and the brightness will
adjust to 25% automatically.
Product Parameters:
Sizes(mm) | 1500*760*80 |
Number of LED Lamps | 25 |
LEDs Per Lamp | 30 LEDs |
LED Colar | Amber |
Power Consumption | 40W |
Voltage | 12V |
Brightness | 25%, 50%, 75%, 100% can be choosen |
Control System | Remote Controller |
Mounting Options | Vehicle or Trailer-mounted |
Weight | 69kg |
The arrow board comes with two controllers for easy operation. One
controller is designed to be installed in the car to control the
arrow board, while the other little controller is more convenient
and portable for outdoor use. Both controllers are equipped with
various functions that can control the modes, brightness, and up
and down movements.
Additionally, users have the flexibility to choose from four
different brightness levels, including 25%, 50%, 75%, and 100%.
When connecting the arrow board to a 12V battery, the low voltage
indicator will be activated when the voltage drops to 11.4V. This
indicator is designed to adjust the arrow board lights' brightness
to 25% automatically, ensuring operational safety.
To ensure a seamless appearance and effective waterproofing, this
arrow board adopts an integrated structure without solder joints.
Waterproof strips are also embedded at the door opening to further
enhance waterproof capabilities. Multiple tests of aging have
confirmed that this design can effectively prevent water damage.
With a visibility distance of over 500 meters, the NBAB-25VIP LED
arrow board is perfect for directing drivers and pedestrians during
temporary road closures or construction projects. Whether you need
to reroute traffic or guide people around an obstacle, this arrow
board will ensure that everyone stays safe and on track.
The NBAB-25VIP LED arrow board is available in various sizes to
suit your specific needs and requirements. And with a vibrant amber
color, it is easy to see even from a distance. Plus, it can be
powered by either solar or battery, giving you flexibility and
convenience when it comes to installation and use.
Ordering the NBAB-25VIP LED arrow board is easy and affordable. You
can purchase as few as one board, with a price range of
USD545.5/PC-568.1/PC. The product comes packaged in a carton with
dimensions of 165*88*27cm, making it easy to transport and store.
And with a delivery time of 7-10 working days and payment terms of
T/T, you can start using your arrow board in no time.
So if you need a reliable and high-quality LED arrow board for
temporary traffic control or road closures, look no further than
NobTra's NBAB-25VIP. With a supply ability of 5000PCS/MONTH, we are
ready to meet all of your traffic control needs.
Our LED Arrow Boards come with comprehensive technical support and services to ensure the best performance and longevity of the product. Our team of experts is available to assist with installation, operation, and maintenance of the product. Additionally, we offer repair services and replacement parts to keep your LED Arrow Board functioning properly. Our technical support team is available 24/7 to answer any questions or concerns you may have regarding the product.
Q: Can the brightness of the arrow board be adjustable?
A: Yes, through our controller, you can adjust the brightness to
25%, 50%, 75%, and 100%.
Q: Is the arrow board waterproof?
A: Yes, we've done the waterproof test for our arrow board, and it
rating IP54.
Q: Where is the LED Arrow Boards product manufactured?
A: The LED Arrow Boards product is manufactured in Shenzhe, China.
Q: What is the certification of the LED Arrow Boards product?
A: The LED Arrow Boards product is certified with CE.
Q: Do you have MOQ for LED arow board?
A: The minimum order quantity for the LED Arrow Boards product is
1.
Q: What are the packaging details for the LED Arrow Boards product?
A: The packaging details for the LED Arrow Boards product is a
carton with dimensions of 165*88*27cm.
![]() |
