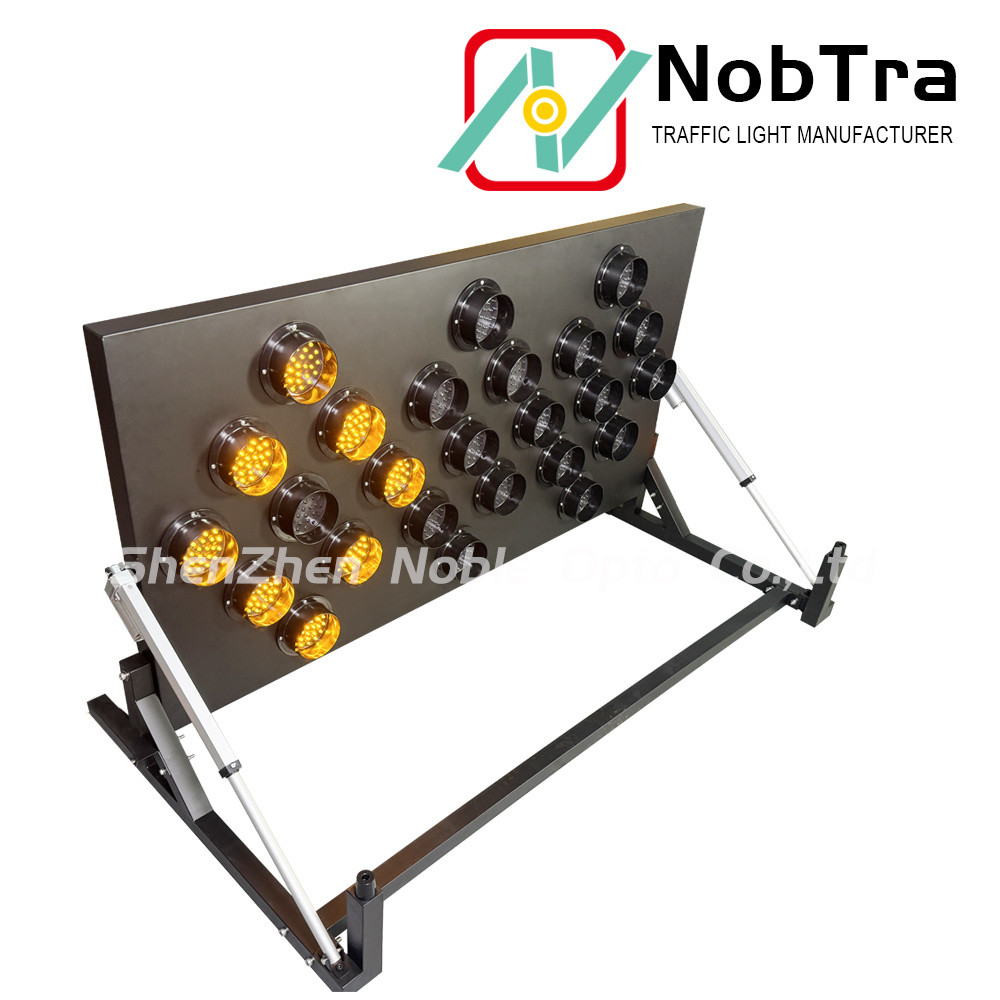

Product Description:
Product No. NBAB-25VIP is designed to be mounted on trucks, making
it perfect for mobile traffic control. Its yellow color enhances
visibility even in low light conditions, ensuring the safety of
drivers and pedestrians alike.
The control system of our LED Arrow Board is wireless, allowing for
easy and efficient operation from a distance. The wireless remote
control ensures that the operator can remain at a safe distance,
away from oncoming traffic.
Our LED Arrow Board can operate in extreme temperatures, making it
ideal for use in any weather condition. It can withstand
temperatures ranging from -40°C to 85°C, ensuring its reliability
even in harsh environments.
In conclusion, our Bright LED Arrow Board is a must-have for any
traffic control operation. With its high-visibility LED chips,
wireless remote control, and ability to operate in extreme
temperatures, it is the perfect solution for ensuring the safety of
drivers and pedestrians on the road.
Technical Parameters:
| Product type: | NBAB-25VIP |
| Number Of Lamps | 25pcs |
| LED chips: | Import from Taiwan |
| Control Distance | 30 Meters |
| Brightness | Can be adjustable |
| Kinds Of Work Status | 6 Flashing, 7 Sequential |
| Operating Voltage | 12/24VDC |
| Mounting Type | Trailer Or Vehicle Mount |
| Material | Iron |
| Visibility Distance | Over 1000 Meters |
| LED Diameter: | 85mm |
| Pusher: | With double push |
| Application: | Road maintenance |
| Size | 1.5 Meters |
| Waterproof level: | IP54 |
| Working temperature: | -40 degree to 60 degree |
| Certifications | CE |
| Control System | Wireless Remote Control |
Details pictures display:
Application:
1. Place it in front of highway maintenance operations to remind
the driver to drive carefully.
2. Place it in dangerous palce on the highway where there are
hidden traffic safety hazards to remind drivers to pay attention
safety.
3.It's suitable for road sweepers, Road maintenance engineering
machinery and other slow-moving vehicle on the road, as well as
highway
guidance and maintenance, ETC. To remind the vehicle behinds to
move slowly in front of the vehicle.
Function:
| |
| Press each time,modes switch between(1)(2)(3)(4)(5)(6) |
| Press each time,modes switch between(7)(8)(9)(10)(11)(12)(13) |
| Press Key 3 after press key1 or key2,the correspondent flashing or
sequential modes begin |
| Brightness adjustment key,to switch four modes(25%,50%,75%,100%) |
| Actuator's up key,press one time to lift,press second time to stop. |
Advantage:
A. 25%,50%,75% 100% can be adjusted at will, if the external power
supply is selected, when the power
supply is lower than 12V, the low voltage indicator will light up,
and the brightness will be automatically adjust to 25%.
B. The whole body is painted with good anti-corrosion and rust
prevention, the thickened shell is processed by high-quality
materials,
the product is sturdy and durable., not easy to paint, and has a
wide range of usage scenarios.
C. The car body adopts a combined structure, which can be
disassembled when shipped, saving space means saving shipping
costs.
Customization:
1) For the LED arrow board, we can print your company logo to our
product. But it wil charge some costs.
2). For the Size. We can provide the 1.2 Meters, 1.5 Meters and 1.8
Meters. If you want the different size.
Please offer the details dimension to me. Then our R&D
deparment will confirm whether can do it.
3)We can print your company logo to our cartons outside. But it
will charge some costs.
4) If you want to add the beacon light or warning light to the LED
arrow board. It can add.
Packing Details:
| 1 Carton | 1 Set |
| Carton size: | 165x88x27cm |
| G/W: | 69.2KG |
| Production time: | 5-6 working days for sample order 11-15 working day for 50-100pcs 16-19working day for 101-300pcs 20-25 working day for 301-500pcs |
| Noted: | Includinng the pearl cotton protection, designed cartons, double
push, car control, Remote control, User manual. |
Shipping Method:
- Shipping via Internataional express. Such as the DHL, UPS, Fedex,
UPS, TNT and special line.
- Shipping via Train. If your quantity was large and want to save
some shipping costs.
- Shipping via Sea. The delivery time was long. But shipping costs
will be cheap.
- Shipping via Air. The delivery time will be short. But shipping
costs will be expesenive.
- FOB shen zhen, guangzhou, dongwan,zhongshan, ningbo and so on.
- Tracking number will be provided after the goods sent out.
FAQ:
Question: What power options are available?
Answer: The LED arrow board working voltage was 12-24VDC.
Question: Could you offer technical guide for the product install?
Question: With details user manual for the installation and our
engineer can offer the online guide.
Question: How to operate the LED arrow board?
Answer: The remote control and car control can change the LED arrow
board working.
Question: Do you accept the OEM?
Answer: Yes, we have professional R&D department. Base on your
actual demand, we can OEM the product for you.
Question : Could we visit your company?
Answer: Yes, I'm glad to meet you in our factory. We will share
with our factory production environment for you.
Question: What's MOQ?
Answer: MOQ was 1pcs
Question: Are you a manfacturer or trading company?
Answer: We are manufacturer of the LED Arrow board, solar radar
traffic speed sign and traffic control system.
Question: What is the warranty?
Question: With 2 years quality warranty. If the accessories had
broken and due to the quality problems. We will send a new parts
for replacement.
