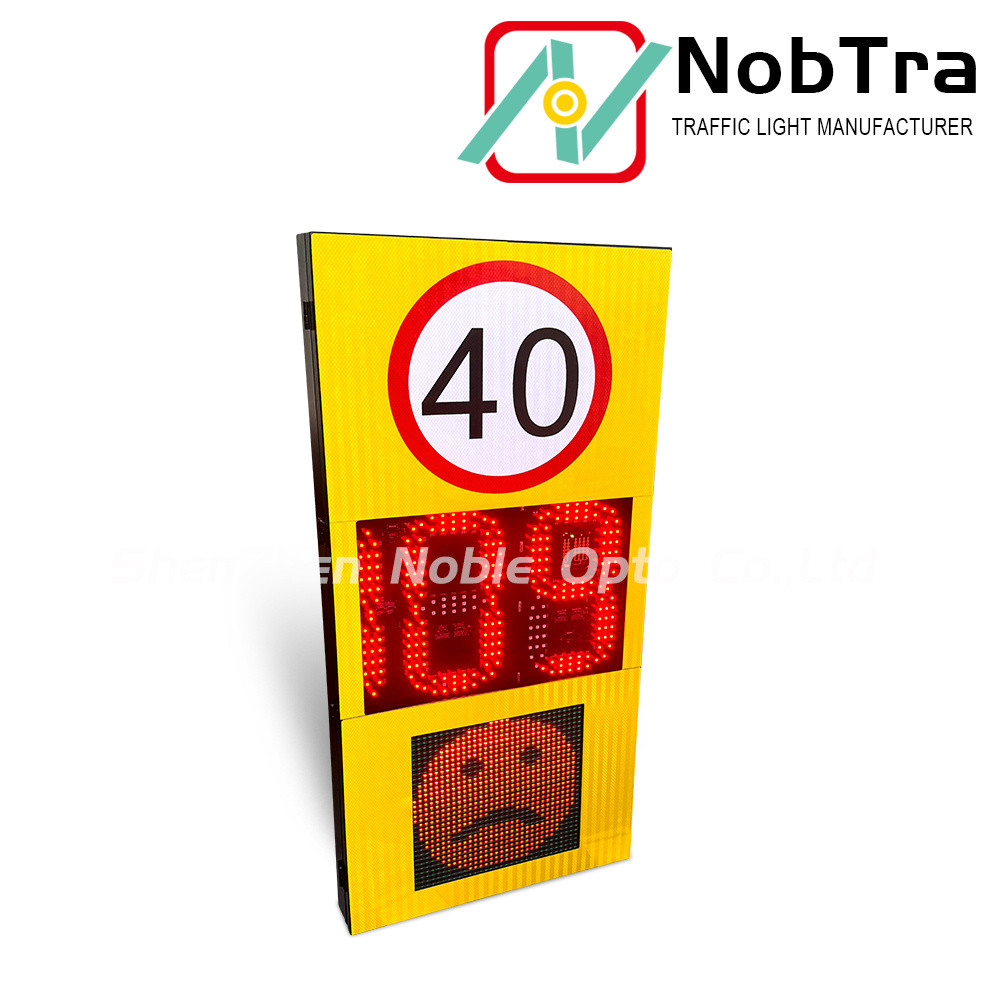

Outdooor Application Aluminium Board Traffic Speed Limited Sign
With IP54 Waterproof
Product parameters:
| Product type: | NBTR188&FL&SLV-S |
| Working temperature: | -40 degree to 60 degree |
| Power consumption: | Red: 19.8watt Green: 21.85watt |
| Yellow Aluminium Sign | 30/40/50/60 |
| Display | Vehicle speed/Red Cry Face/Green Smile Face |
| Solar panel: | 12VDC, 60watt |
| Application: | 4 way intersection, busy street and school area |
| Body Material: | cold-roll -steel sheets |
| Mounting: | With mounting bracket |
| Battery: | Suggestion purchase the battery in your local |
| Quality warranty: | 2 years ( 1 years for the solar panel) |
| Parameter setting method | By Phone App |
| Radar working frequency | 24.150GHZ |
| Light lifespan working time: | 1000 hours/ 3 days |
| LED color | Red Green |
| Visible distance: | >300 Meters |
| Suggest install height: | 2.5 Meters-4 Meters |
| PCB material | Epoxy glass cloth laminate (FR4) |
| Front speed limit panel | 30 km/40/50/60(optional) |
| Waterproof level: | IP54 |
Details pictures display:
Product advantage:
1. The NobTra radar speed system can use the mobile phone APP to
adjust the sensitivity,there are ten levels of
sensitivity.Where 1 is the highest sensitivity and 10 is the lowest
sensitivity.The sensitivity can be adjusted according to the
enviroment in which the product is used,meet the needs of various
projects.
2. Imported raw meterials(including Taiwan-made) high-brightness
light-emitting diodes(LEDs),higher brightness and longer life, the
lamp beads are eye-catching and distinct in color, and have good
visibility both during the day and at night. LED modules and LED
lamp beads style are optional.
3. The Nobtra radar speed system is made of high-quality
cold-rolled steel,which is 2mm thick galvanized cold-rolled
open-rolled board,with overall baking paint inside and outside,
beautiful appearance design, impact
resistance,anti-aging,corrosion resistance,waterproof and
dustproof.
4.The speed limit panel of the NobTra radar speed limit card supports
customization,which are 30,40,50,60....or other
customized values.
5. The NobTra radar speed measurement system adopts professional
traffic radar imported from Germany,with high-precision vehicle
speed real-time display function,accurate and reliable speed
measurement results,strong anti-interference ability and high
precision.Divided into built-in models and external models,you can
choose the style you like.
6.,All-day snapshot function,the system has a large capacity, can
store 20,000 illegal speeding records,and supports mobile APP to
view the snapshot records.The license plate captured by the camera
will display the license plate number on the display.
Package information:
| 1 Carton | 2 Set |
| Carton size: | 76*54*13CM(set) 120*85*13CM(1set) |
| G/W: | 19.98KG |
| Production time: | 1-10pcs Production time:5-8 working days 11-100pcs Production time: 10-15 working days 101-500pcs Production time: 15-20 working days |
Application:
NobTra Solar traffic speed sign used for the various intersection
and busy street, shcool area and so on.
Product Feature
| 1.The mobile phone APP to set parameters within 10 meters, and can
supportApple,Android and Hongmeng operating systems. |
| 2.There are ten levels of sensitivity.1 is the highest sensitivity
and 10 is the lowest sensitivity. |
| 3.There are ten levels of brightness.1 is the darkest and 10 is the
brightest |
| 4.Imported professional traffic radar is adopted, with
high-precision vehicle real-time display function, accurate and
reliable speed measurement results, strong anti-drying ability and
high precision |
| 5.Radar speed limit card supports customization, which are
30,40,50,60....or other customized values |
| 6.NobTra radar speed speed sign is sealed and waterproof, and can
adapt to all kinds of bad weather. |
| 7.Solar power supply continuous rainy days for 7-10 working day. |
| 8.Import LED Chips and long LED lifespan. |
Terms of payment:
1)Paypal account.
2)With TT bank transfer. With RMB/USD/EUR account can be chose.
3) With Wechat account and Alipay account.
4) 30% deposit for production and the balance 70% will be paid
before the delivery.
5) In cash.
Shipping method:
1) Shipping by Air. This way will be fast, but the shipping costs
will be high.
2) Shipping by Sea. This was will be long time delivery. But the
shipping costs will be low.
3)DHL, UPS, Fedex, TNT and special line. Most customer choose this
way.
4) FOB SHEN ZHEN/Guangzhou/Ningbo will be acceptable.
5) If you have own forwarder. Please inform him or her to pick up
goods from our factory.
FAQ:
Question1: Are you a manufacturer or trading company?
Answer1: We are manufacturer of the traffic speed sign and traffic
control system.
Question2: What is the warranty?
Question2: With 2 years quality warranty. If the accessories had
broken and due to the quality problems. We will send a new parts
for replacement.
The solar panel with 1 years quality warranty.
Question3: Whether support the phone app and PC app operate?
Answer3: We provide the phone App and PC app and details user
manual.
Question4: Do you accept the OEM?
Answer4: Yes, we have professional R&D department. Base on your
actual demand, we can OEM the product for you.
Question 5: Do you provide the techical support for the product
setting and installation?
Answer5: We have details instruction. If you don't know how to
setting, we will send you a details operate video.
Question6: What's MOQ?
Answer6: MOQ was 1pcs
Question7: What power options are available?
Answer7: All of the radar signs can be made in either Solar Powered
or AC Powered and some have the option to be Battery operated.
